Zig Zag study is broken and it got worse
View Count: 249
| [2026-09-01 07:07:25] |
| User84094 - Posts: 58 |
|
There should not be green number below.
|

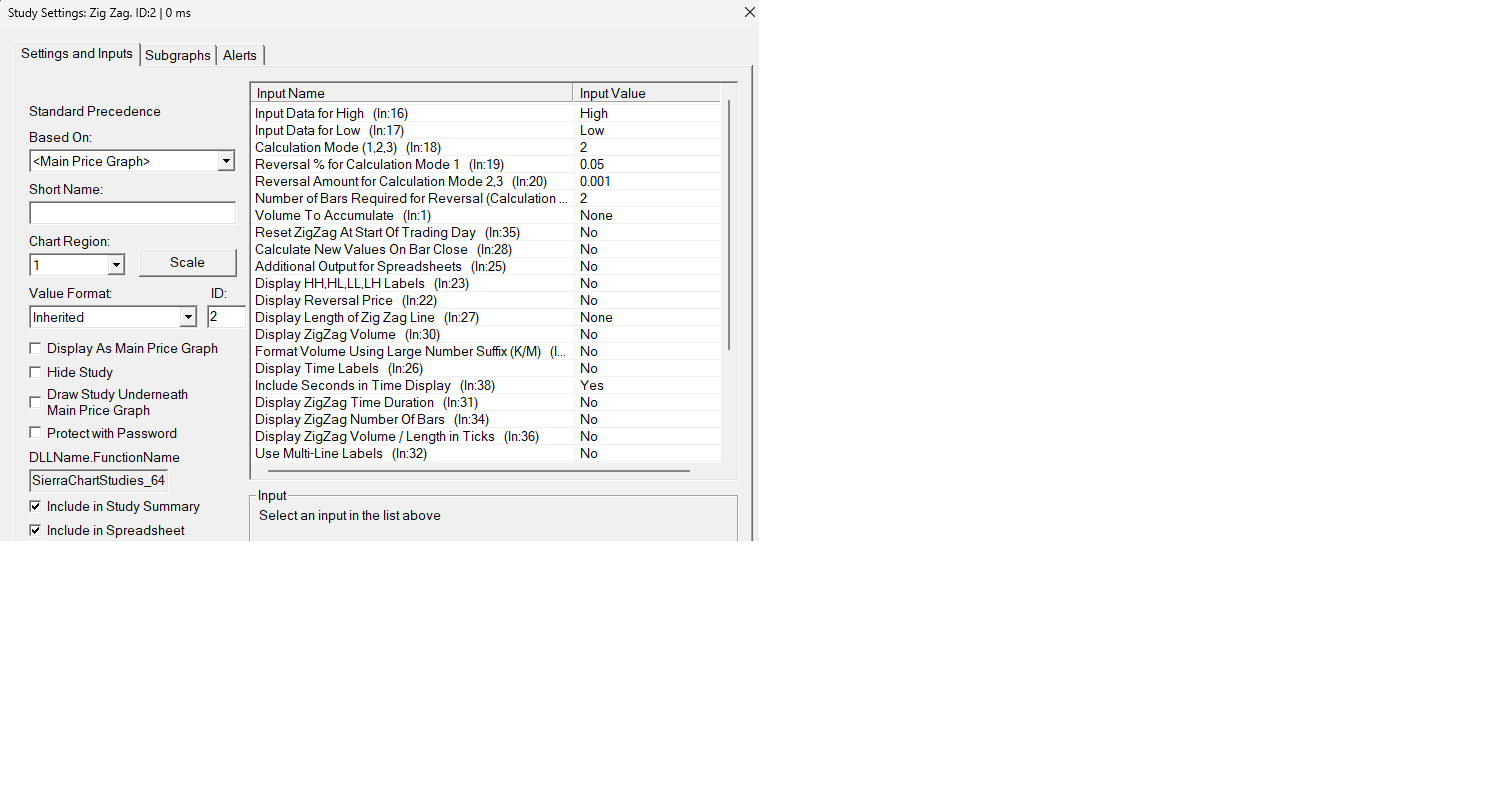

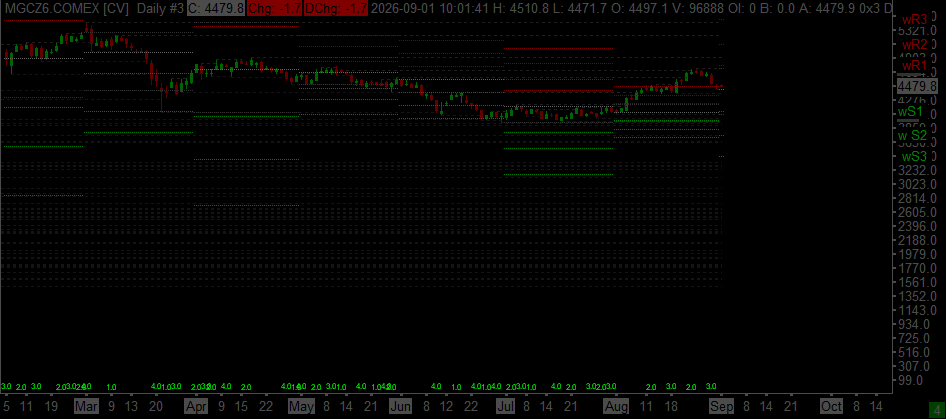

 MGCZ6.COMEX [CV] Daily #3 2026-09-01 10_01_42.608405.png / V - Attached On 2026-09-01 07:02:55 UTC - Size: 22.34 KB - 64 views settings.png / V - Attached On 2026-09-01 07:05:02 UTC - Size: 69.77 KB - 40 views |
| [2026-09-01 07:18:37] |
| Sierra_Chart Engineering - Posts: 25199 |
|
We do not see a problem like this. Save the Chartbook with File >> Save, and then remove the zigzag study from the chart. Do the numbers get removed? Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2026-09-01 07:18:52
|
| [2026-09-01 07:39:03] |
| User84094 - Posts: 58 |
|
Yes. Earlier the numbers were far left in beginning the chart (not visible but scrolling into far left I saw them ). But now numbers are from beginning of chart to the end. |
| [2026-09-01 14:36:49] |
| John - SC Support - Posts: 48237 |
|
So is everything correct now, or are you still having an issue?
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2026-09-01 16:13:15] |
| User84094 - Posts: 58 |
|
Yes this is still a issue. I downloaded latest version and it didn't help either |

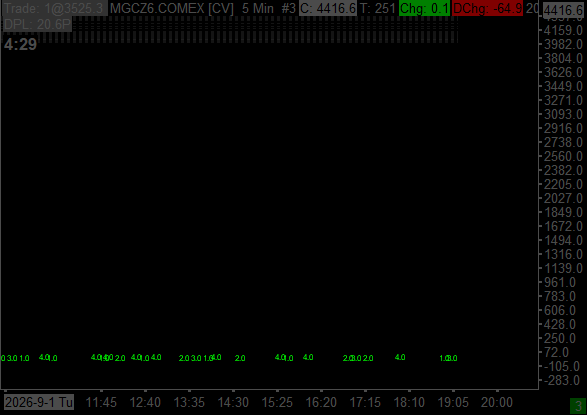

| MGCZ6.COMEX [CV] 5 Min #3 2026-09-01 19_10_30.381282.png / V - Attached On 2026-09-01 16:13:06 UTC - Size: 15.83 KB - 36 views |
| [2026-09-01 16:38:05] |
| John - SC Support - Posts: 48237 |
|
You are displaying something that you should not be, such as the "Zig Zag Oscillator" subgraph. But with that subgraph, you should have numbers at every bar, so we do not think it is that exactly. Please get us that chart by following these instructions: Support Board Posting Information: Providing Chartbook with Only a Single Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2026-09-01 16:49:26] |
| User84094 - Posts: 58 |
|
This is my main indicator that I use for years.
|
 Check this.Cht - Attached On 2026-09-01 16:49:20 UTC - Size: 5.24 KB - 30 views |
| [2026-09-01 20:01:09] |
| John - SC Support - Posts: 48237 |
|
You changed to the "Draw Style" for the "Text Labels (SG2)" to be "Transparent Custom Value at Y Left Aligned". This must be left as "Custom Text" for the study to work properly. Please change that item back to "Custom Text". For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
