Add Additional Symbol
View Count: 33
| [2026-08-07 17:36:31] |
| User841161 - Posts: 340 |
|

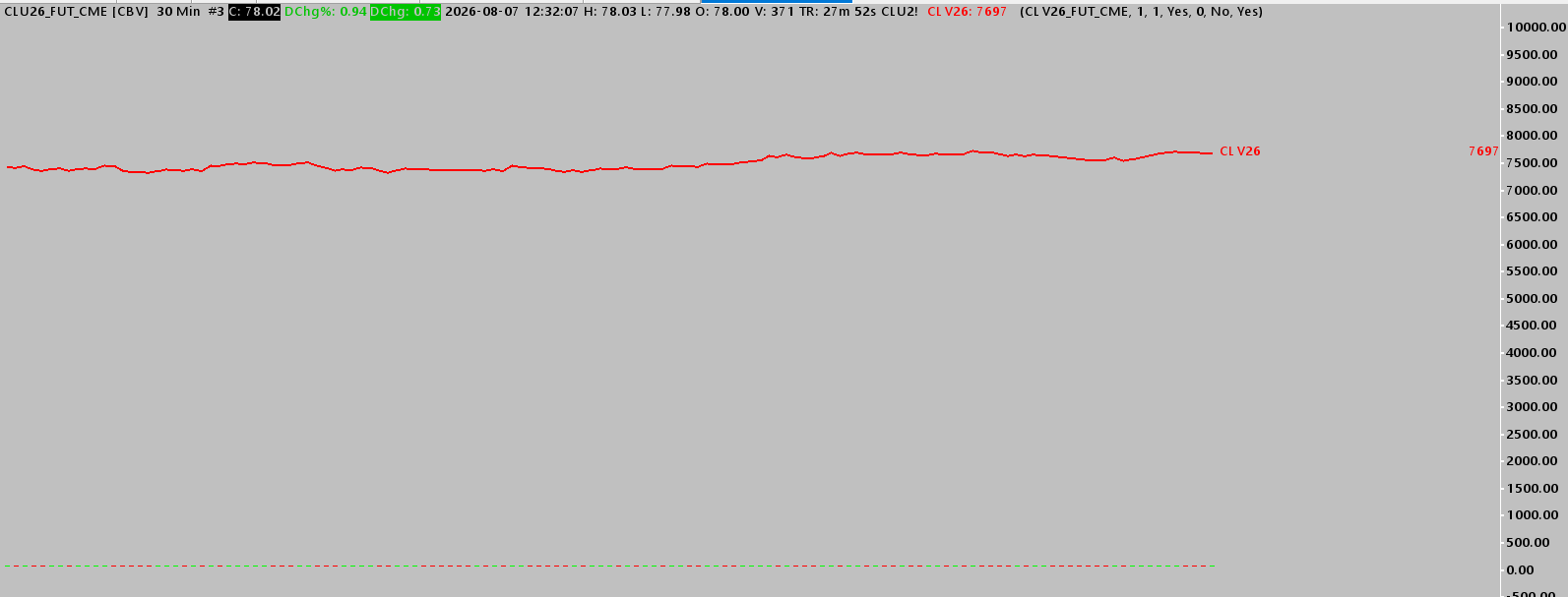

I am using add additional symbol the my chart. I am using automatic scale. I can't seem to get the Y axis scale right to go with the scale of main chart- CLV26 should be 76.80 not 7680.
|
 Screenshot 2026-08-07 123224.png / V - Attached On 2026-08-07 17:36:21 UTC - Size: 28.92 KB - 6 views |
| [2026-08-07 18:07:24] |
| John - SC Support - Posts: 47506 |
|
Please get us that chart as we need to see how you have this setup. Follow these instructions to get us the chart: Support Board Posting Information: Providing Chartbook with Only a Single Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2026-08-07 18:25:05] |
| User841161 - Posts: 340 |
|
Here it is.
|
Private File |
| [2026-08-07 18:40:48] |
| John - SC Support - Posts: 47506 |
|
The "Real-Time Price Multiplier" for CL when connected to Teton CME Routing (i.e. when you are using a symbol of CL?##_FUT_CME) is 0.01. This is handled internally through the symbol settings, so it is not something you would normally need to think about. But, when you use the "Add Additional Symbol" study, that does not have a way to update that symbol per the symbol settings for that symbol. Therefore, you need to set the "Price Multiplier" in the Add Additional Symbol to "0.01" for this particular situation. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2026-08-07 19:04:23] |
| User841161 - Posts: 340 |
|

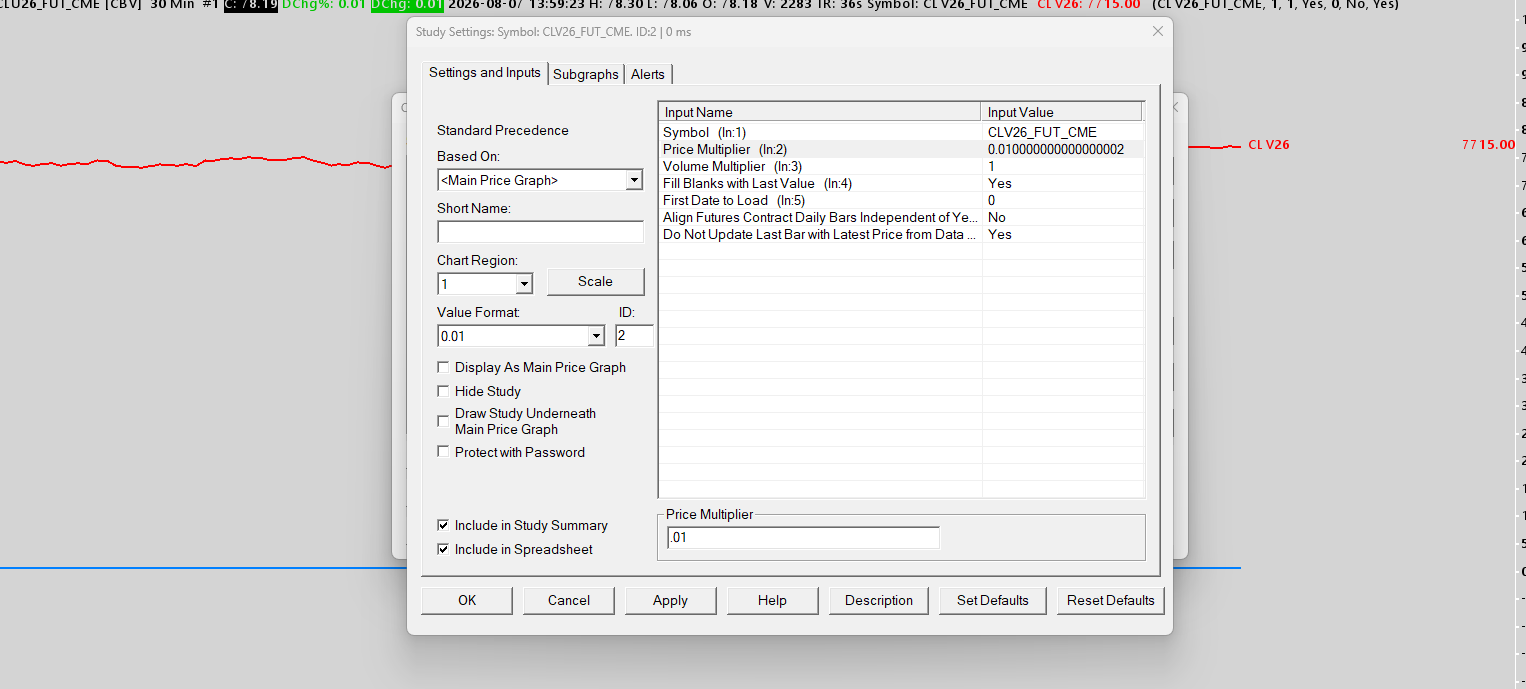

ok, I'm not sure it affects anything, but when I went in to put .01 as price multiplier it added zeros then 2 at end? See Attached.
|
| Screenshot 2026-08-07 135936.png / V - Attached On 2026-08-07 19:04:14 UTC - Size: 76.9 KB - 2 views |
