Volume by Price - Settings
View Count: 20
| [2026-07-28 13:40:04] |
| User92573 - Posts: 605 |
|
Still struggling a little to get things sorted. Now back on Volume Profile but different issue hence different thread. I've set the VbP to "Multiple Profiles Start Time to End Time" (multiple sessions) to what I think is correct but I'm getting unexpected results/profiles. When I use the manually drawn "Draw Volume Profiles" I get the expected result. For simplicity I'm using the Globex 00:00:00 - 23:59:59 hours. I've attached 3 charts which also show the previous days "Volume Value Area Lines" which align with the "Draw Volume Profile" study. Clearly, it's most likely me but any help appreciated. Many thanks. PS. John, if you have time would you be able to have a look at thread "Line Label LL_DISPLAY_NAME" Date Time Of Last Edit: 2026-07-28 15:02:32
|

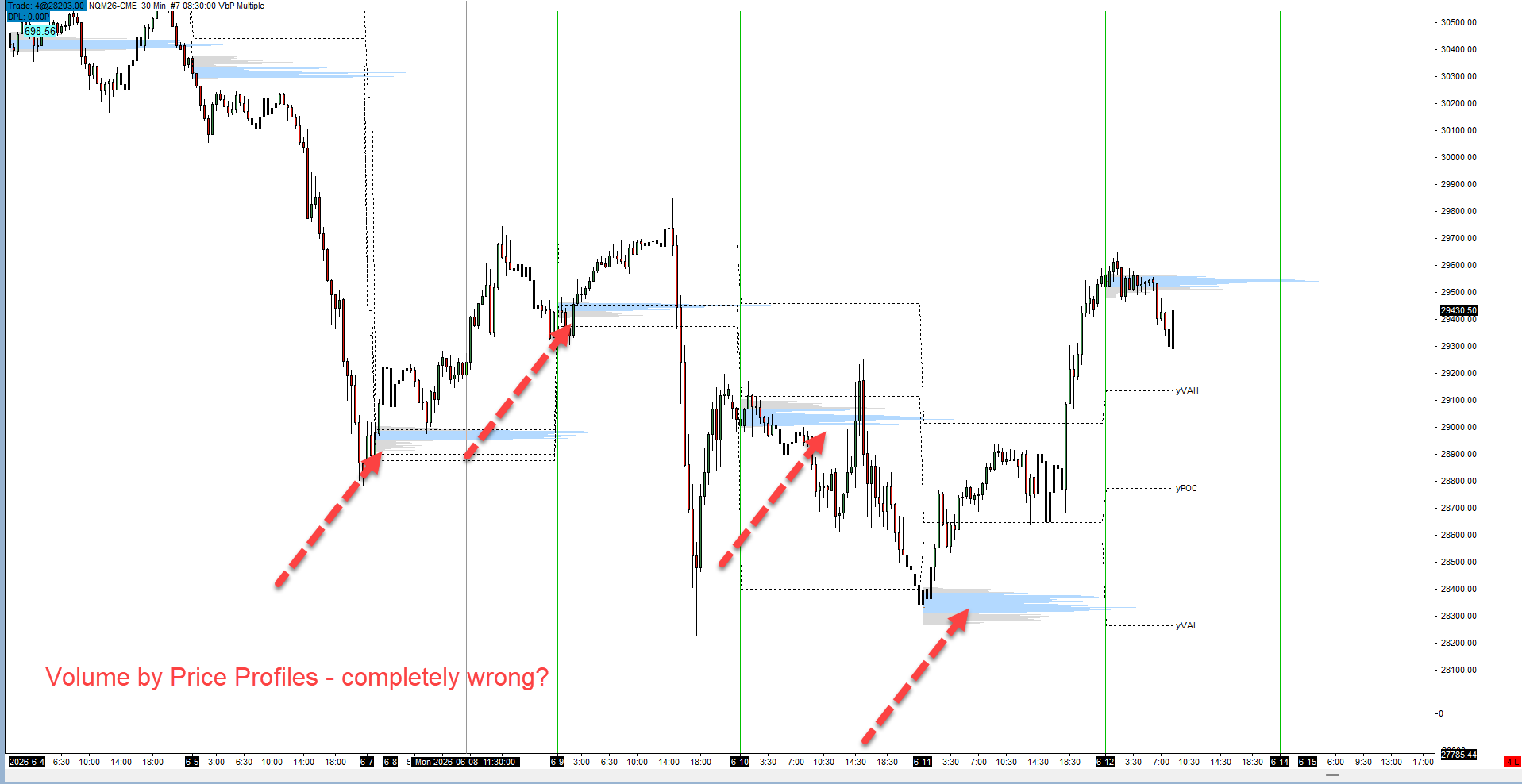

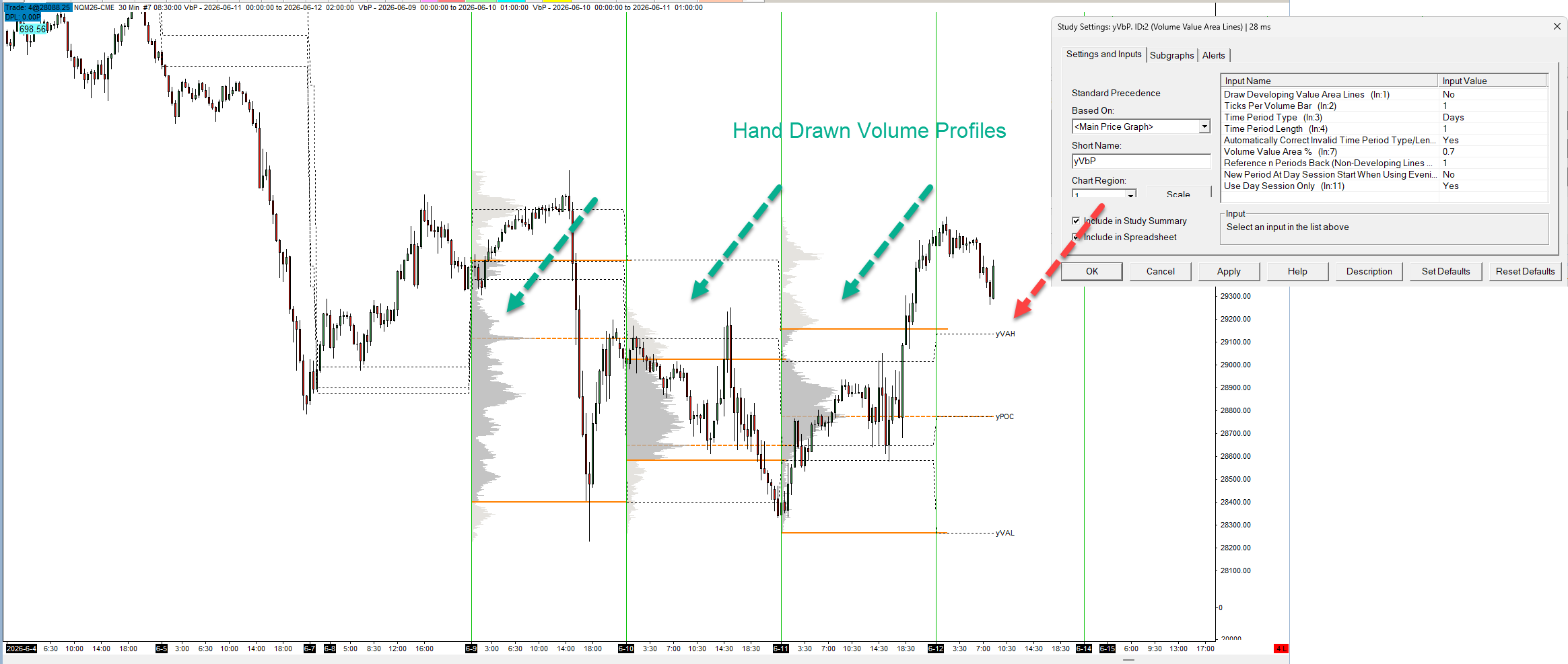

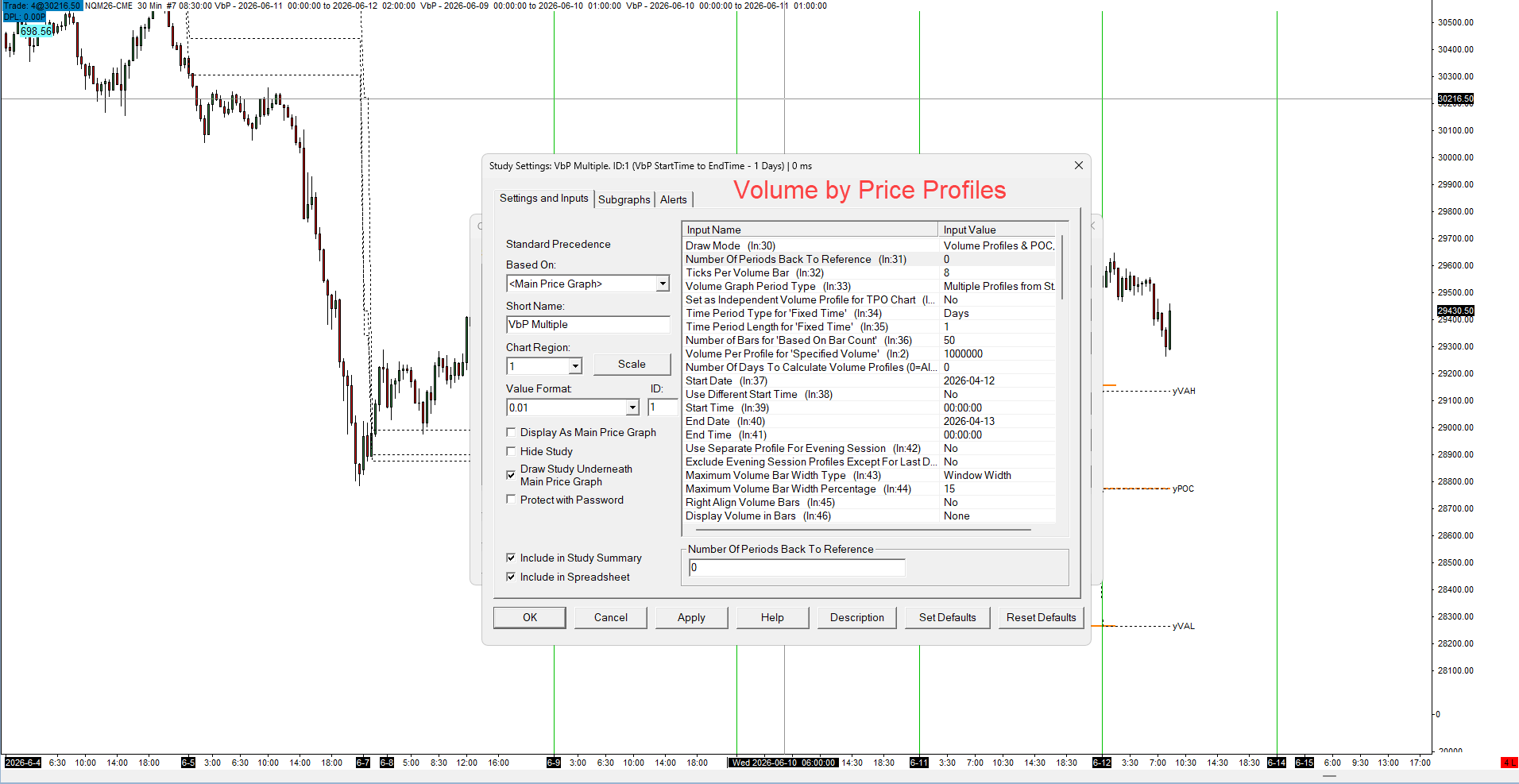

 Volume by Price 01.png / V - Attached On 2026-07-28 13:37:51 UTC - Size: 110.19 KB - 2 views Volume by Price 02.png / V - Attached On 2026-07-28 13:37:59 UTC - Size: 110.94 KB - 2 views Volume by Price 03.png / V - Attached On 2026-07-28 13:38:12 UTC - Size: 81.19 KB - 1 views |
| [2026-07-28 15:24:51] |
| John - SC Support - Posts: 47367 |
|
From "Volume by Price 01.png", you show a "Volume Value Area Lines" study with a "Ticks per Volume Bar" set to "1". This needs to match what is set in the Volume by Price study or you will get different Value Areas. From "Volume by Price 02.png", you state that you are using a "Volume Graph Period Type" of "Multiple Profiles from Start Time to End Time", but your "Start Time" is set to "00:00:00" and your "End Time" is set to "00:00:00". Therefore, you will get a profile for the one bar that has a starting time of 00:00:00. If you want the full 24 hours, then you need the following Inputs: - Start Time: 00:00:00 - End Time: 23:59:59 For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
