When Price Hovered on Trade DOM - Highlight Chart Price Level With Horizontal line.
View Count: 244
| [2026-07-25 01:12:30] |
| R15K50 - Posts: 19 |
|

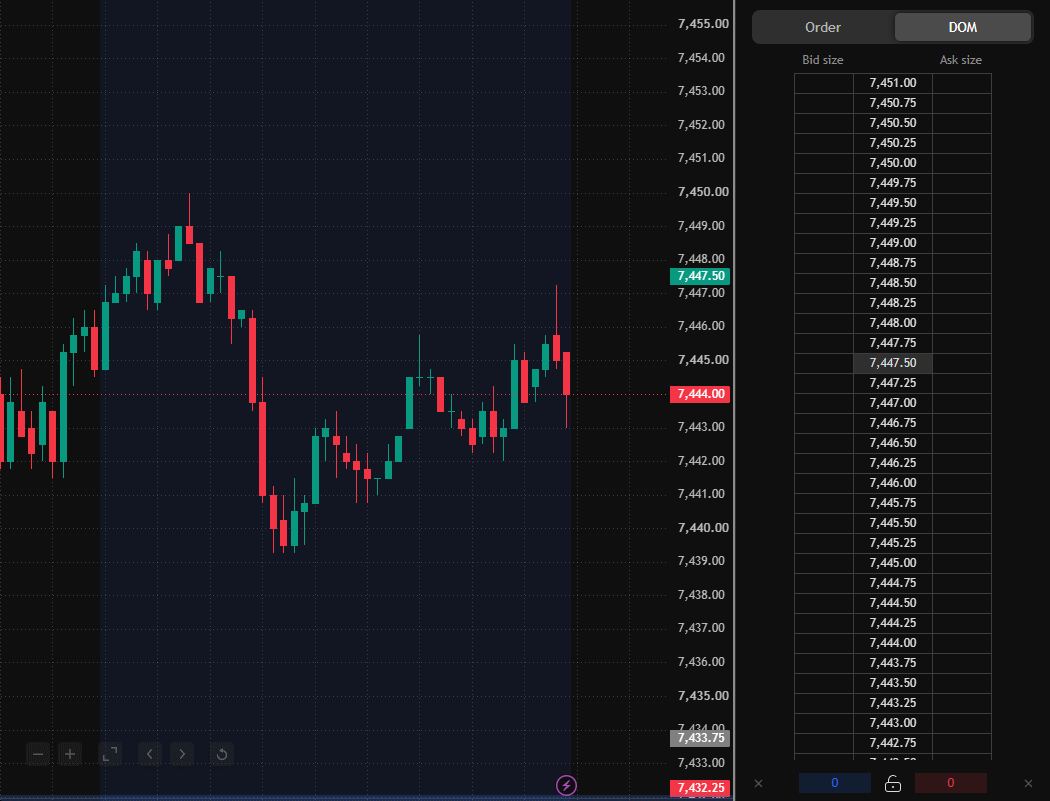

Is it possible to have a horizontal line or the crosshair shown on a chart whenever the mouse cursor hovers over the same price level on the "Trading DOM"? See attached GIF image for an example of what I'm referring to. I have tried linking the scale of the Trading DOM and target Chart (Set the scale setting of both to be the same). But the result only mirrors scroll position and not hovering over the prices on the DOM, etc.
Date Time Of Last Edit: 2026-07-26 22:09:45
|
 When-Price-Hovered-Highlight-With-Horizontal-Line.gif / V - Attached On 2026-07-25 01:10:07 UTC - Size: 401.81 KB - 63 views |
| [2026-07-27 14:49:25] |
| John - SC Support - Posts: 47817 |
|
This can be done. Follow these instructions to make it work: - On the Trading DOM, select "Chart >> Chart Settings >> Trading. - On that tab, make sure the option for "Support Chart Values Tool for Trading DOM Mode" is set to "Yes". - Make sure the Chart you want to use and the Trading DOM are both set to have the "Chart Values/Crosshair" as the active tool. - Enable "Chart >> Global Cursor On" (has a checkmark next to it). - Turn on the crosshairs in either chart to see it both of them. Just be aware that the Chart DOM has a much smaller range of prices, so you need to be very close to the current market price in order to view it on the Trading DOM. You have other options for how to control this, including the option for "Symbol Cursor On" and "Use Common Drawing Tool for Charts" and "Allow Change of Common Drawing tool for Trading DOMs". For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2026-07-27 23:30:22] |
| R15K50 - Posts: 19 |
|
Worked wonderfully - thank you very much.
|
