Volume profile display
View Count: 265
| [2026-07-12 08:02:04] |
| User751630 - Posts: 22 |
|

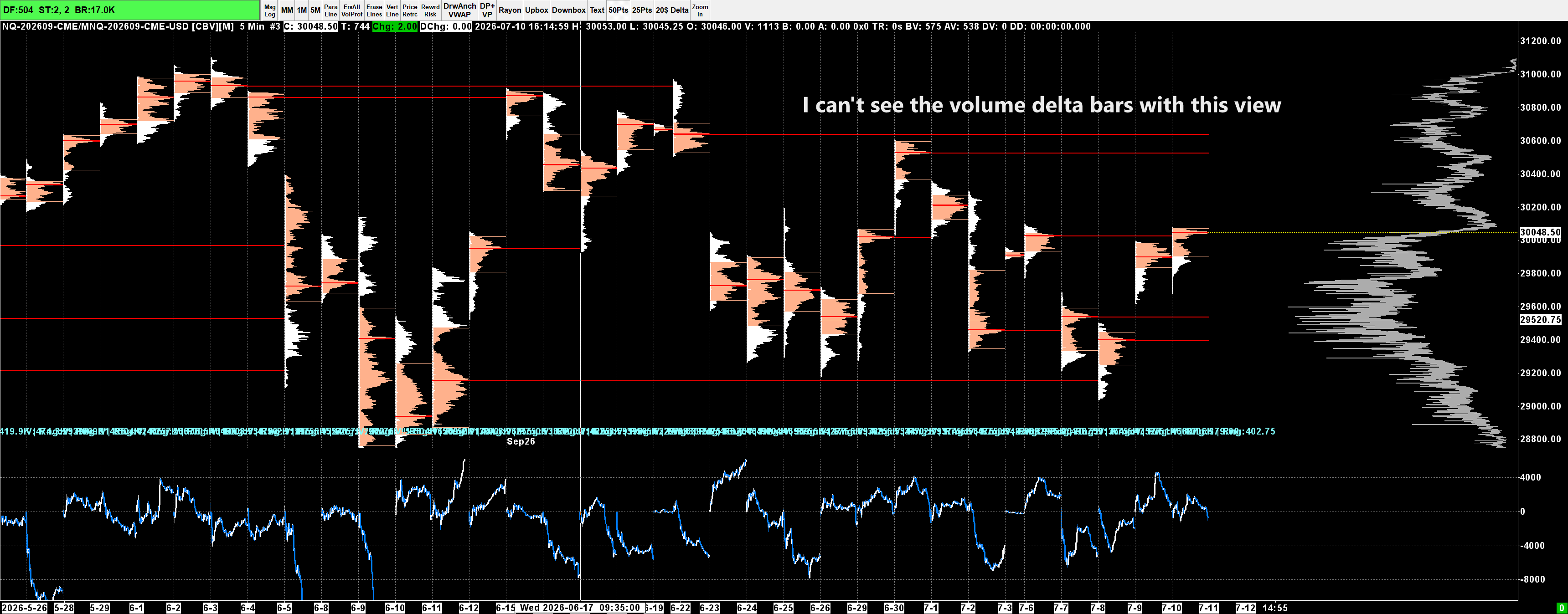

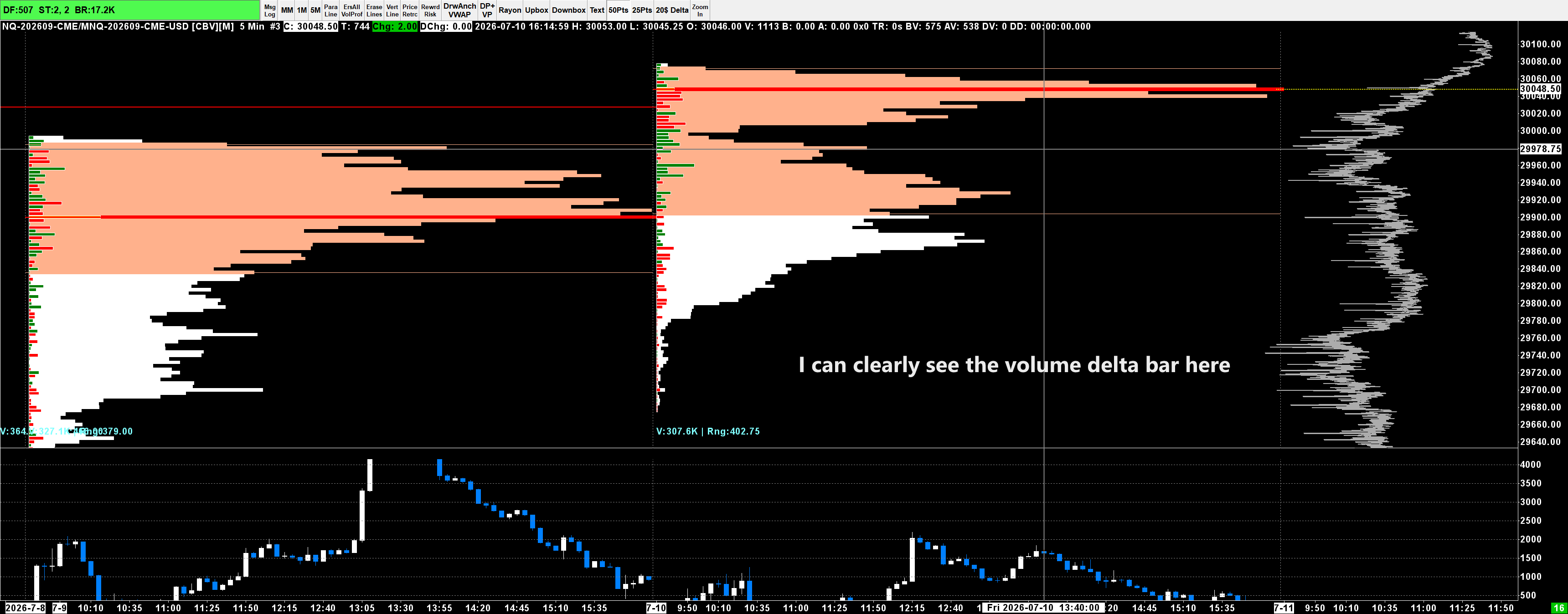

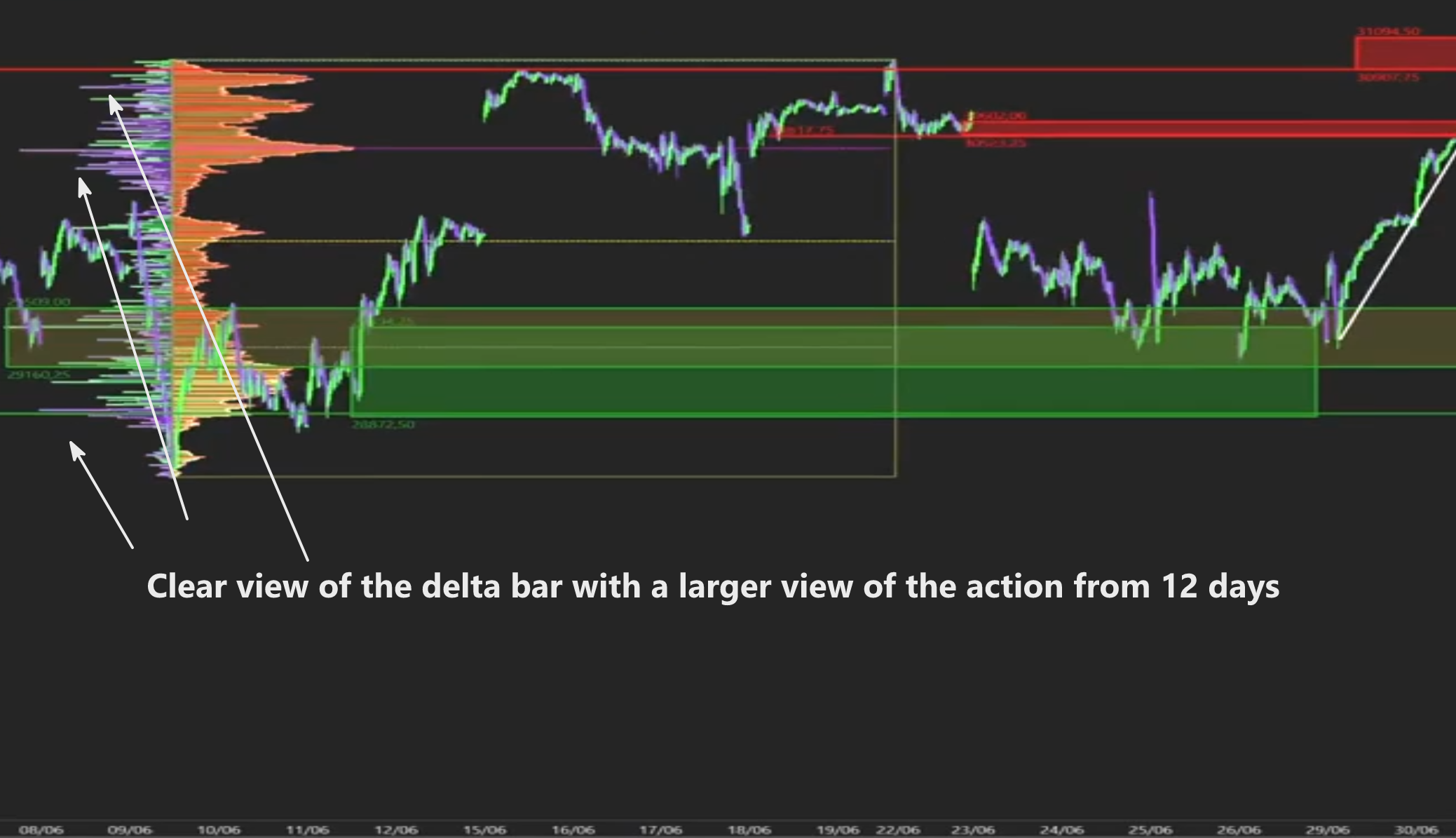

Hello! I want to know if i can make the volume bars larger than what is displayed in the screenshot? Screenshot 1 , i can't see the volume delta bars Screenshot 2, i can see clearly the volume delta bars How can i make the volume delta bar in screenshot 2 display in screenshot 1(i want bigger volume delta bars to avoid to zoom a lot in each profile) Screenshot 3 from deepchart, perfect view of the delta bars Is it possible? |
| [2026-07-12 16:52:30] |
| User708541 - Posts: 205 |
|
I've seen this request come up before and I also think it would be very good to have. I think the input would be something like "Mirror Volume Bars on Left"
|
| [2026-07-12 17:08:48] |
| User431178 - Posts: 900 |
|
How can i make the volume delta bar in screenshot 2 display in screenshot 1(i want bigger volume delta bars to avoid to zoom a lot in each profile)
Add a second vbp for delta and adjust the profile width to suit, sample attached. In the attached chartbook, volume profile is set to max 30% of period length, where as delta profile is set to max 10%. The displayed size of the delta bars is no longer relative to the length of the volume bars. Date Time Of Last Edit: 2026-07-12 17:10:18
|
 volume_delta_profile.png / V - Attached On 2026-07-12 17:08:29 UTC - Size: 35.76 KB - 45 views  volume_delta_profile.Cht - Attached On 2026-07-12 17:08:43 UTC - Size: 4.7 KB - 40 views |
| [2026-07-12 17:12:53] |
| User708541 - Posts: 205 |
|

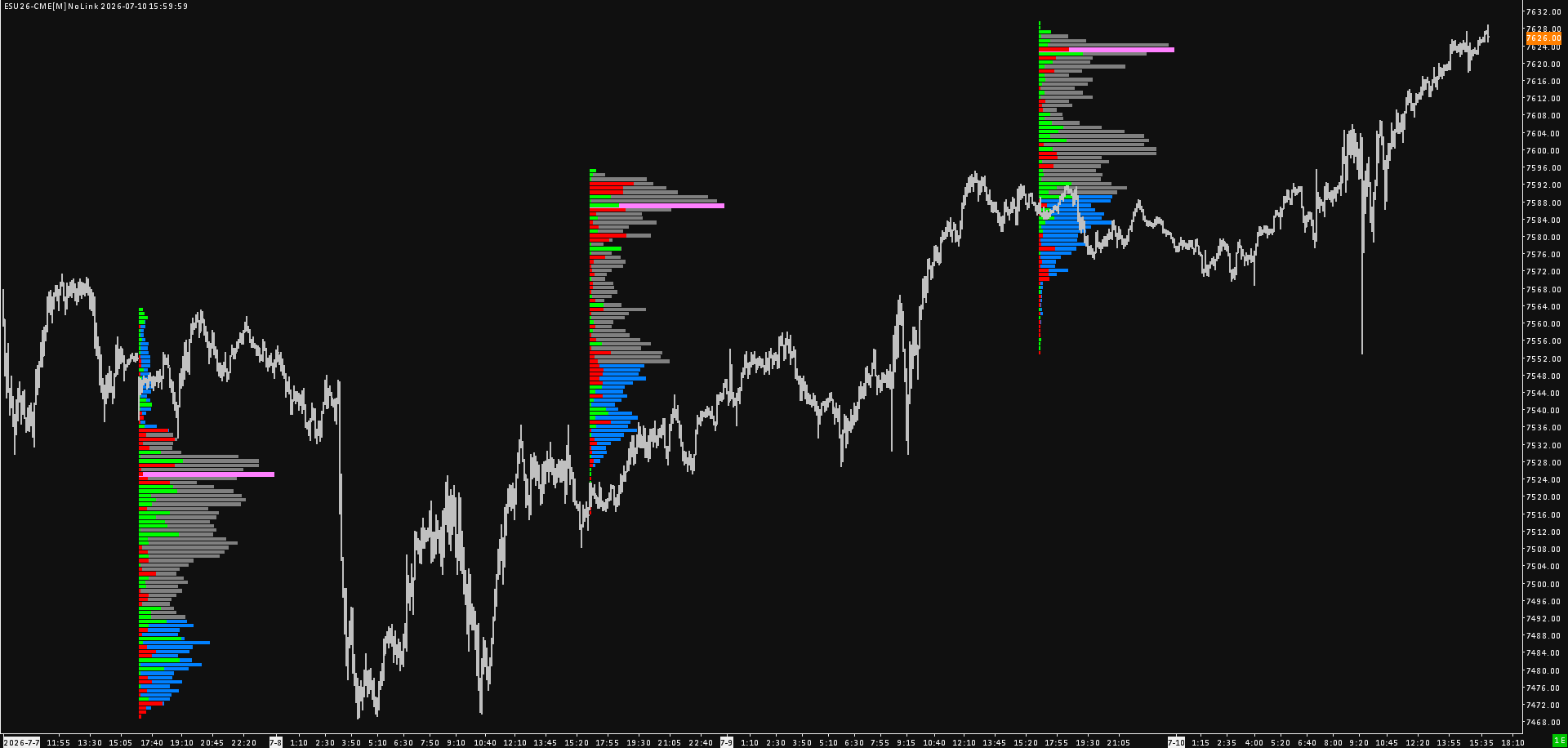

For me and I think others, the goal is to have a display like image 8794.png where the 2 different profiles are set back to back not on top of each other.
|
| [2026-07-12 17:20:25] |
| User431178 - Posts: 900 |
|
For me and I think others, the goal is to have a display like image 8794.png where the 2 different profiles are set back to back not on top of each other.
Not currently possible, therefore I showed original poster how to achieve what they asked "bigger volume delta bars to avoid to zoom". |
| [2026-07-13 05:54:59] |
| User751630 - Posts: 22 |
|
Add a second vbp for delta and adjust the profile width to suit, sample attached.
In the attached chartbook, volume profile is set to max 30% of period length, where as delta profile is set to max 10%. The displayed size of the delta bars is no longer relative to the length of the volume bars. Thanks for your answer. So i try your studies config and it's good but the only problem is that if i zoom out for studying 12 days in a 5 min chart, the study disappear. But it's good for intraday :-). Thanks, Date Time Of Last Edit: 2026-07-13 05:57:04
|
| [2026-07-13 08:10:33] |
| User431178 - Posts: 900 |
|
So i try your studies config and it's good but the only problem is that if i zoom out for studying 12 days in a 5 min chart, the study disappear.
You can increase the maximum width, maybe it won't disappear then? Volume By Price Study: Maximum Volume Bar Width Percentage |
