Market profile
View Count: 122
| [2025-10-17 18:24:58] |
| User931951 - Posts: 55 |
|

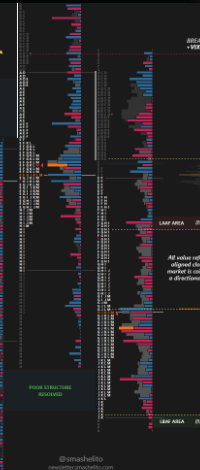

Good morning, how can I add the volume profile like in the picture? You see how I can view the buy deltas and sell deltas? Thank you.
|
 Screenshot 2025-10-17 alle 20.22.48.png / V - Attached On 2025-10-17 18:24:34 UTC - Size: 60.41 KB - 30 views |
| [2025-10-17 18:49:00] |
| John - SC Support - Posts: 43321 |
|
To have a Volume Profile with both the Total Volume and the Ask/Bid Difference, start with a standard Volume Profile (Volume Bar Calculation Method is set to "Total Volume", then set the Input for "Bid Volume Ask Volume Coloring Method" to "Difference of Bid and Ask Volume Coloring" (or one of the other delta options). Refer to the following: Volume By Price Study: Volume Bar Calculation Method Volume By Price Study: Bid Volume and Ask Volume Coloring Method Also be aware of the option for "Draw Difference of Bid and Ask Volume Using Percent of Max Bar". Refer to the following: Volume By Price Study: Draw Difference of Bid and Ask Volume Using Percent of Max Bar For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
