Exporting Market Profile Data (TV, TTC, TPOC, RF) to Text File
View Count: 24
| [2025-10-15 18:05:39] |
| User655320 - Posts: 1 |
|

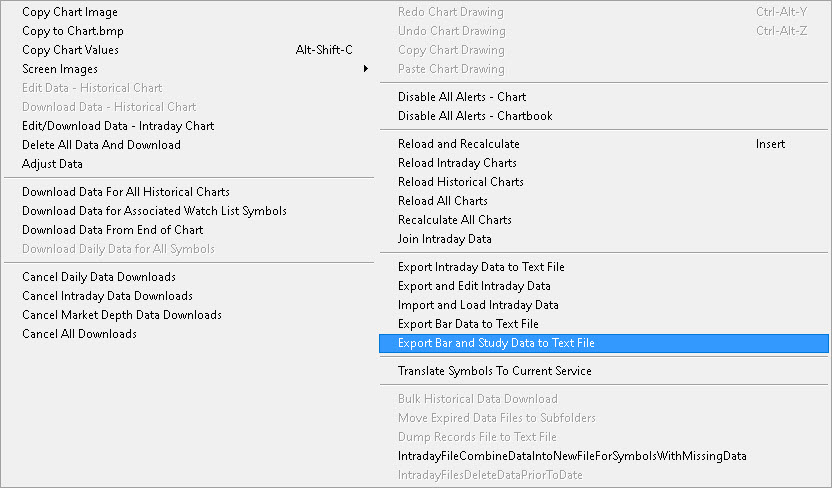

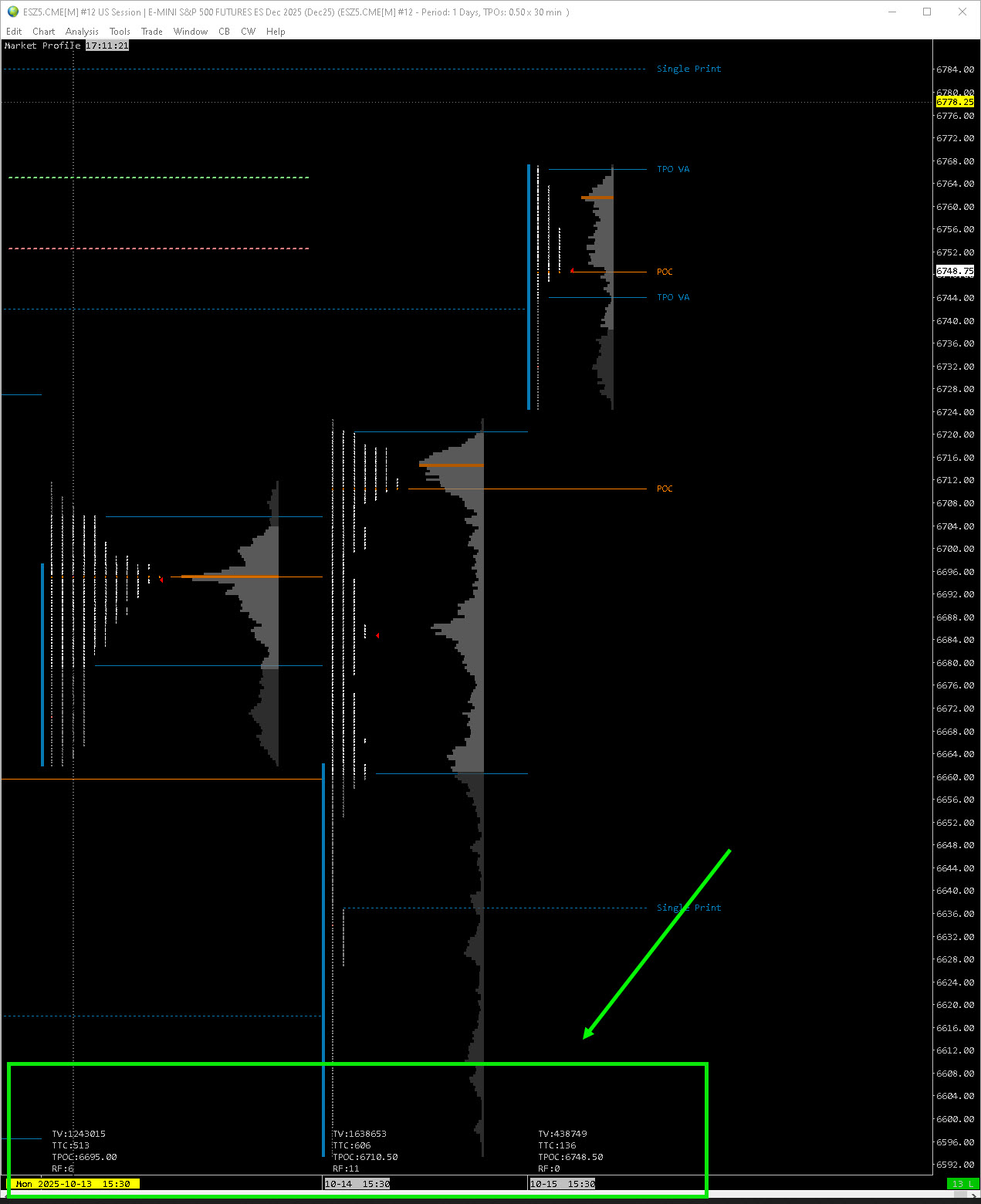

Hello Sierra Chart Support Team, I am currently trying to export Market Profile (TPO) data, including the following values, to a text file: TV (Total Volume) TTC (Total TPO Count) TPOC (TPO Point of Control) RF (Range Factor) I’ve already tried using File → Export Bar and Study Data to Text File, but this only exports standard bar and study data — not the Market Profile statistics shown at the bottom of the TPO chart (see attached screenshot). Is there a way to include these additional Market Profile statistics (TV, TTC, TPOC, RF) in the exported file, or can they be accessed via Spreadsheet Study / SCID data structure? I’ve also checked the Market Profile study settings, but I could not find an option to output these variables as subgraphs or data fields for export. Could you please explain how to correctly export these Market Profile parameters or make them available for further analysis (e.g., CSV/Excel)? Thank you for your time and support. Best regards |
 15-10-_2025_17-12-21.jpg / V - Attached On 2025-10-15 18:05:31 UTC - Size: 83.44 KB - 5 views 15-10-_2025_17-11-281.jpg / V - Attached On 2025-10-15 18:05:34 UTC - Size: 230.77 KB - 6 views |
| [2025-10-15 18:10:09] |
| John - SC Support - Posts: 42402 |
|
There is not a way to get that information out of the system using the built-in tools. You can create a custom study that has access to this information and export as you want. Refer to the following: ACSIL Interface Members - Functions: sc.GetStudyProfileInformation https://www.sierrachart.com/index.php?page=doc/SierraChartStudyAndSystemProgrammers.php For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
