COLOR BAR BASED ON ALERT

View Count: 1201

[2014-10-06 08:33:38] #1 [Go To First Post]
User28317 - Posts: 147
I HAVE SEVERAL ALERTS THAT COLOR THE BARS BASED ON SET CONDITIONS. HOWEVER, I CAN'T GET THE BAR TO CHANGE FROM A BUY TO A SELL WHEN THE SLOPE OF THE 16 HULL CHANGES FROM POSITIVE TO NEGATIVE. THERE IS A SEVERAL BAR DELAY BASED ON ANOTHER CONDITION. ANY ADVICE WOULD BE APPRECIATED.

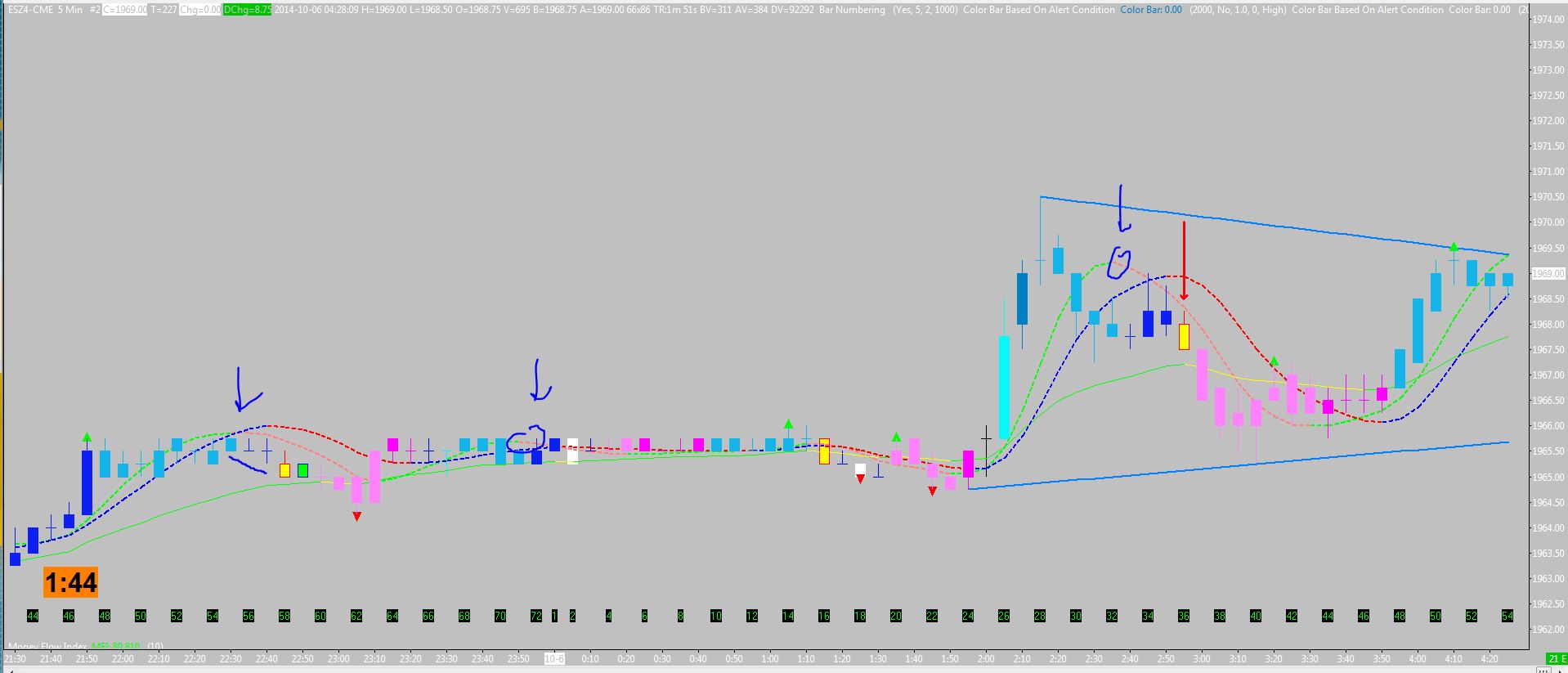

HOW TO CHANGE BAR COLOR BASED ON SLOPE OF HULL.JPG / V - Attached On 2014-10-06 08:32:51 UTC - Size: 118.98 KB - 334 views

[2014-10-06 13:35:40] #2 [Go To First Post]
mkata - Posts: 103
THERE IS A SEVERAL BAR DELAY BASED ON ANOTHER CONDITION. You will need to move the hull condition study up higher in the study list so that it takes precedence before the other study conditions. http://www.sierrachart.com/index.php?page=doc/doc_ChartStudies.html#StudyDisplayOrder

[2014-10-06 15:40:32] #3 [Go To First Post]
User28317 - Posts: 147
If I wanted to combine 4 alerts into one so I didn't have to deal with priority, how would the the structure look? Would you start out with =or and then do and for each additional expression?

[2014-10-06 15:42:51] #4 [Go To First Post]
User28317 - Posts: 147
these are two sell expressions, how to combine them as one?

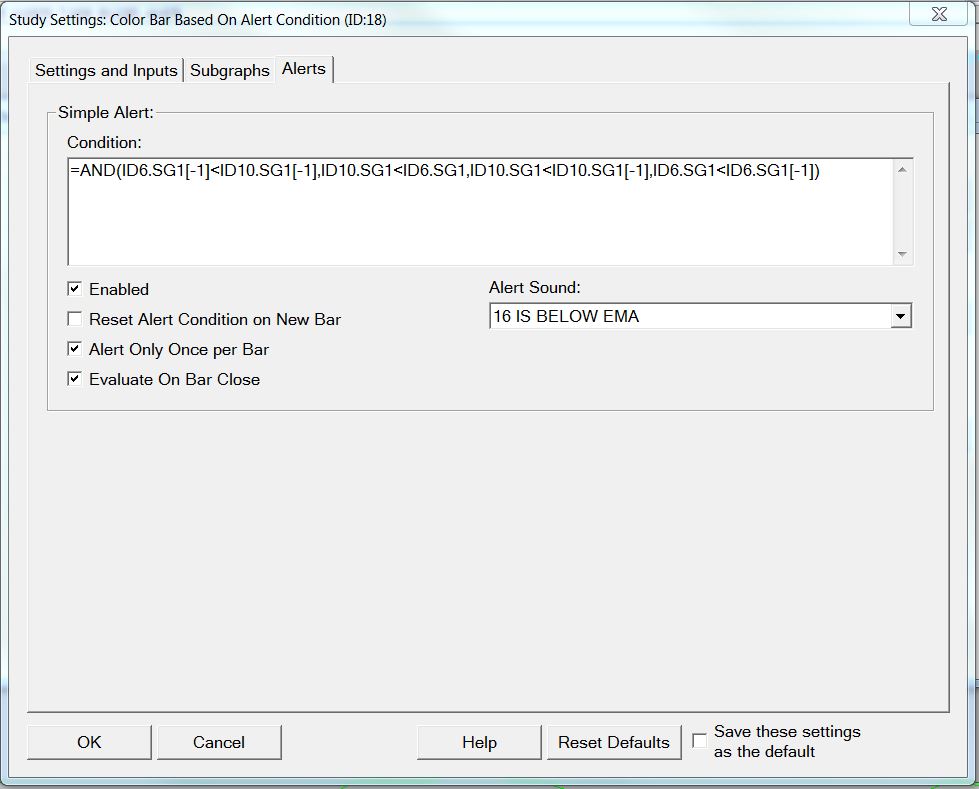

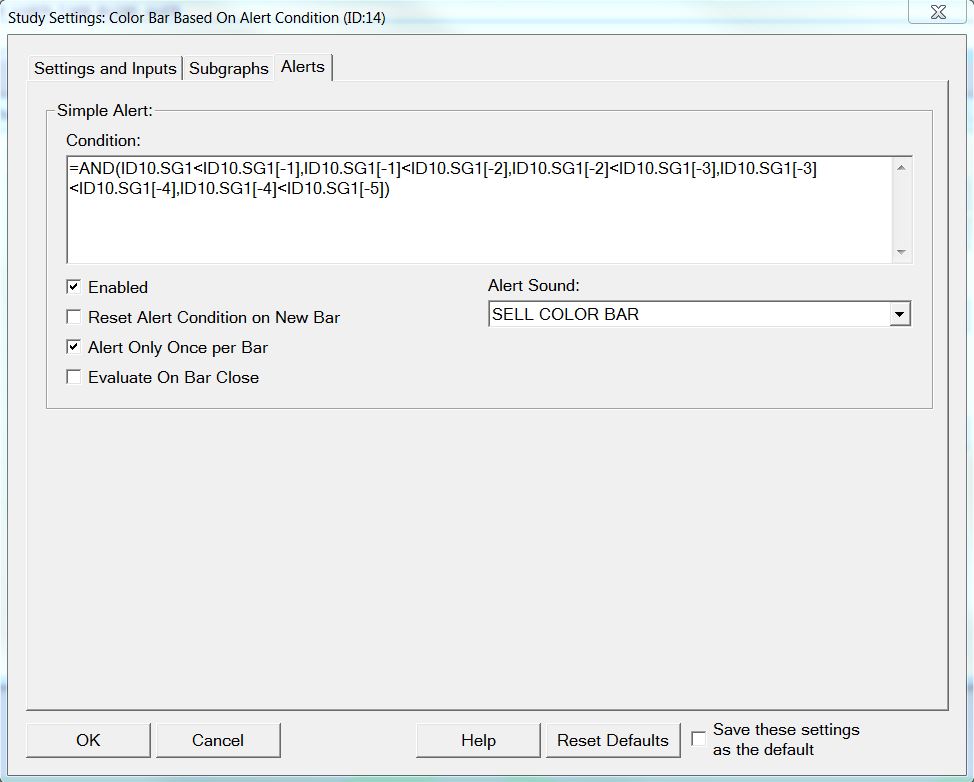

ALERT 14 SELL.JPG / V - Attached On 2014-10-06 15:41:39 UTC - Size: 79.69 KB - 338 views ALERT 18 SELL.JPG / V - Attached On 2014-10-06 15:42:00 UTC - Size: 81.79 KB - 303 views

[2014-10-06 16:56:38] #5 [Go To First Post]
mkata - Posts: 103
Are you trying to color the price bar up/down when the slope of two MA's are both(+) or both(-)?

[2014-10-07 18:03:29] #6 [Go To First Post]
User28317 - Posts: 147
When both are positive I want to color the price bar positive. If the 16 Hull is above the 25 Hull and the 16 hull turns color due to slope, and price bar closes below the MA's, then I want to prioritize the color to being negative.


HOW TO CHANGE BAR COLOR BASED ON SLOPE OF HULL.JPG / V - Attached On 2014-10-07 18:02:18 UTC - Size: 118.98 KB - 290 views

[2014-10-08 00:34:50] #7 [Go To First Post]
mkata - Posts: 103
See if this works. In my example ID6=16Hull and ID7=25Hull. ALERT#1 =OR(AND(ID6.SG1>ID6.SG1[-1],ID7.SG1>ID7.SG1[-1]),OR(AND(ID6.SG1>ID6.SG1[-1],ID7.SG1<ID7.SG1[-1]))) ALERT#2 =OR(AND(ID6.SG1<ID6.SG1[-1],ID7.SG1<ID7.SG1[-1]),OR(AND(ID6.SG1<ID6.SG1[-1],ID7.SG1>ID7.SG1[-1])))
